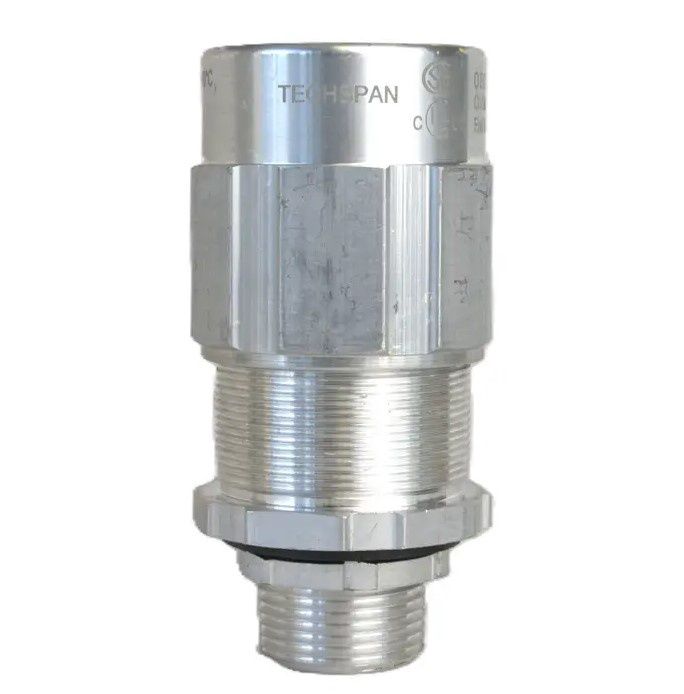

TECK Connector – 1" Hub, For Cable OD 1.05" to 1.36", Aluminum, IP66
The Techspan TECK connector provides a secure and reliable termination for MCC, MC-HL, and TECK cables with outer diameters ranging from 1.05" to 1.36". Its aluminum body ensures corrosion resistance and rugged durability, while the 360° stainless steel grounding spring guarantees safe and compliant electrical connections in industrial and hazardous environments.
Electrical and Safety Compliance:
-
Area Classification: Ex e II, Class I, Zone 1, AEx e II, AEx ta IIC
-
UL Standards: UL 514B, 2225
-
Grounding: Stainless steel spring, 360° grounding
Mechanical and Mounting Details:
-
Hub Size: 1"
-
Cable Strip Length: 1.97"
-
Thru Bore Max: 1.050"
-
Outer Jacket Diameter: 1.050" – 1.360"
-
Outer Armour Diameter: 0.970" – 1.260"
-
Width: 2.205"
-
Length: 4.646"
-
Material: Aluminum
-
IP Rating: IP66
Operating Temperature:
-
-50°C to +85°C
Features & Benefits:
-
Compatible with TECK, MC-HL, and MCC cables
-
360° grounding ensures safe, code-compliant connections
-
Durable aluminum construction for long-lasting performance
-
IP66 rating protects against dust and water ingress
-
Clear hub and cable strip specifications simplify installation
-
Ideal for electrical panels, machinery, and hazardous locations
The Techspan 1" TECK connector (1.05"–1.36") delivers robust, reliable, and safe cable termination, suitable for demanding industrial, commercial, and hazardous applications.
