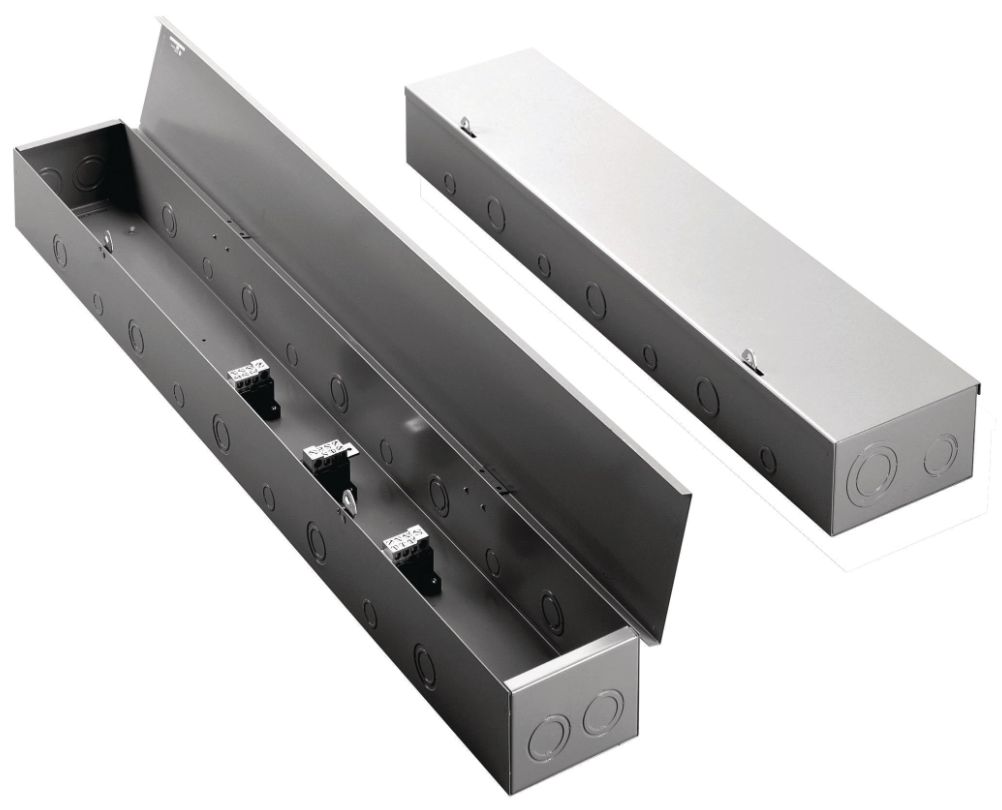

T3103 Splitter Trough – 125A, 3-Wire, NEMA 1
The T3103 T Series Splitter Trough is designed for efficient and reliable indoor power distribution in commercial and industrial applications. Rated at 125 amps and supporting 3-wire configurations, this unit accommodates systems up to 600V and is compatible with both copper and aluminum conductors.
Constructed from durable 16-gauge steel, the enclosure features a NEMA 1 rating, making it ideal for indoor use. Factory-installed splitter blocks allow for quick and organized wiring, reducing installation time. The trough is finished with an ANSI/ASA61 grey polyester textured powder coating, providing corrosion resistance and a clean, professional appearance both inside and out.
For added security and convenience, the unit includes a retractable sealing hasp, ensuring safe access control during operation and maintenance.
Key Features:
- 125A rated, 3-wire configuration
- Suitable for up to 600V applications (Cu/Al compatible)
- NEMA 1 enclosure for indoor use
- Rugged 16-gauge steel construction
- Factory-installed splitter blocks for easy installation
- Retractable sealing hasp for secure access
- ANSI/ASA61 grey powder-coated finish (interior and exterior)
- Dimensions: 36" H × 6" W × 4" D
- Weight: 17 lbs
