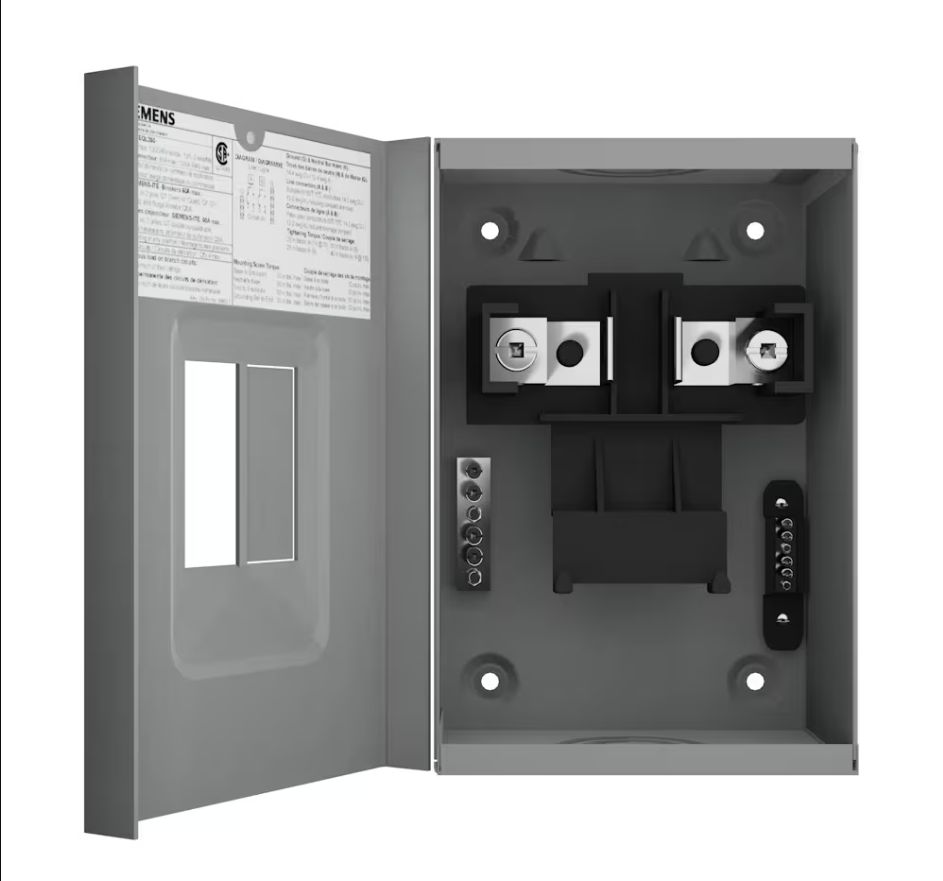

Siemens EQL260S 60A Main Lug Load Centre
The EQL260S is a compact 60 Amp indoor main lug load centre designed for residential sub-panel applications. Manufactured in Canada for Canadian installations, it delivers reliable performance and flexible configuration in a space-saving design.
Product Overview
-
Type: Main Lug Load Centre (Sub Panel)
-
Phase / Wire: 1 Phase, 3 Wire
-
Voltage: 120/240V
-
Maximum Amperage: 60A
-
Circuits: 2 Circuits, expandable to 4
-
Spaces: 2/4 Spaces
-
Mounting: Surface Mount
-
Breaker Type: Bolt-On
-
Indoor Use Only
Key Features
-
INSTA-WIRE™ Neutrals & Ground Bars – Patented design with backed-out screws for faster, easier wire insertion and installation.
-
Flexible Installation – Certified for vertical, horizontal, or inverted mounting.
-
CU/AL Rated – Approved for use with copper or aluminum conductors.
-
Accessory Compatibility – Full range of Siemens load centre accessories available for expanded application flexibility.
-
CSA Certified – Complies with Canadian safety standards.
Dimensions
Assembled Size:
-
7" H × 5" W × 2.75" D
-
Weight: 2.95 lbs
Packaged Size:
-
8.75" H × 5.75" W × 3.75" D
-
Weight: 3.15 lbs
