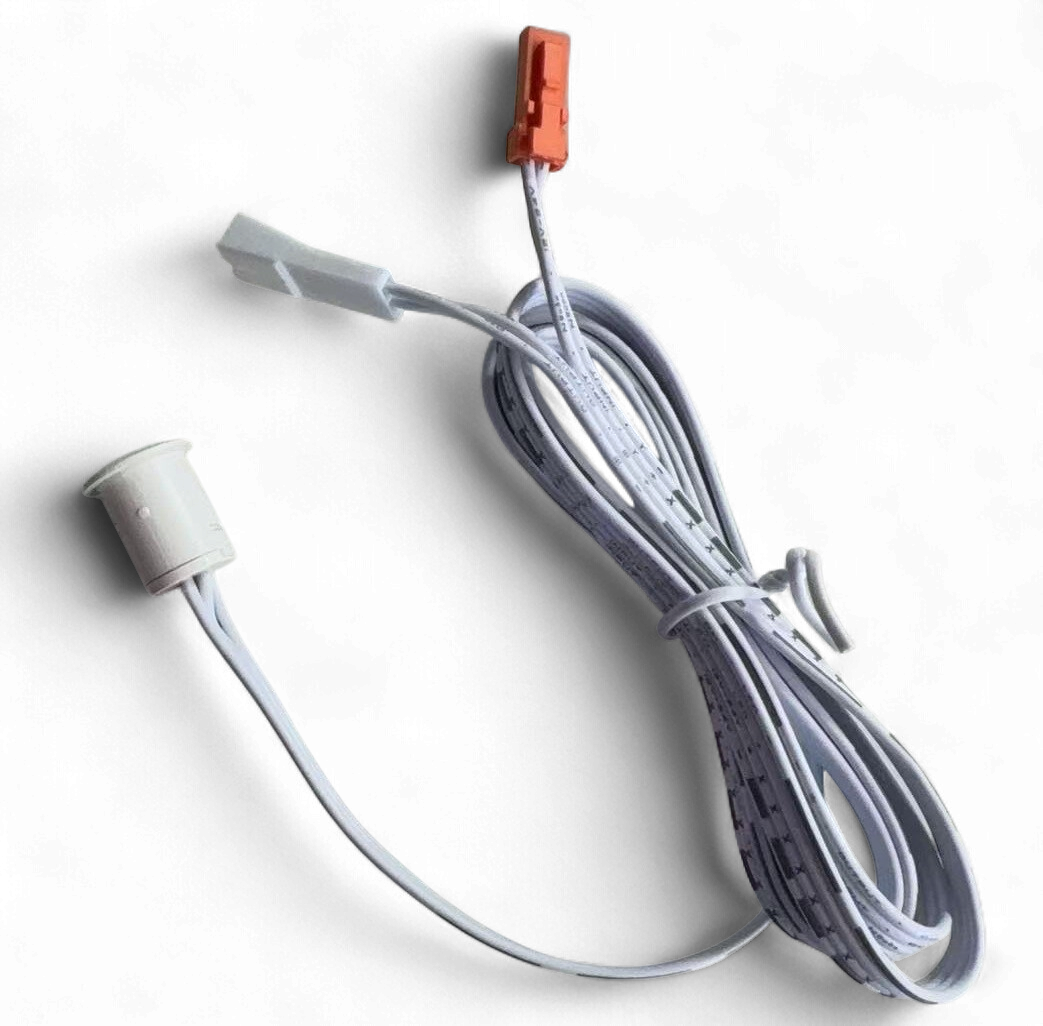

SMART SINGLE SENSOR SWITCH HAND&DOOR 2IN1 LYZ-S15M
Smart Single Sensor Switch – Hand & Door 2-in-1
Model: LYZ-S15M
Product Overview
The LYZ-S15M is a 2-in-1 smart infrared sensor switch designed for constant-voltage 12V or 24V LED lighting systems. It combines hand-wave activation and door-triggered control in a single compact sensor, making it ideal for cabinets, wardrobes, closets, display cases, and furniture lighting.
The sensor automatically detects either a hand motion or the opening/closing of a door to switch the connected LED lights on or off.
Features
- Dual-function operation:
- Hand-wave sensor
- Door sensor
- Non-contact infrared sensing
- Fast response switching
- Compact sensor for concealed installation
- Compatible with 12V and 24V constant-voltage LED lighting
- Low standby power consumption
- Easy installation
- Suitable for furniture and cabinet lighting applications
Specifications
| Item | Specification |
|---|---|
| Model | LYZ-S15M |
| Function | Hand Wave & Door Sensor (2-in-1) |
| Sensor Type | Infrared (EO-IR) |
| Operating Voltage | DC 5–24V |
| Recommended Power Supply | DC 12V or 24V Constant Voltage |
| Detection Distance | 0–8 cm |
| Maximum Load Current | 5A |
| Maximum Load Power | 60W @ 12V / 120W @ 24V |
| Start Mode | Fast |
| Sensor Size | 12 × 16 mm |
| Power Type | Constant Voltage (CV) |
| Quality Control | 100% QC Tested |
| Certification | Intertek / cETLus Listed |
Operating Modes
Hand-Wave Mode
- Wave your hand within 0–8 cm of the sensor.
- Lights toggle ON or OFF without touching the sensor.
Door Sensor Mode
- Door opens → Light turns ON.
- Door closes → Light turns OFF.
- Ideal for wardrobes, cabinets, closets, and drawers.
Installation Notes
- Use only a 12V or 24V DC constant-voltage power supply.
- Do not connect directly to AC mains.
- Maximum LED load:
- 60W at 12V
- 120W at 24V
- Position the sensor so the detection area is unobstructed.
- For door sensing, mount the sensor where it can reliably detect the presence or absence of the cabinet or closet door.
Typical Applications
- Kitchen cabinet lighting
- Wardrobe lighting
- Closet lighting
- Drawer lighting
- Display cabinets
- Furniture lighting
- Bookcases
- Retail shelving
- Vanity mirrors
- Under-cabinet LED strip lighting
The LYZ-S15M provides a versatile solution by combining touchless hand-wave control and automatic door sensing in a single compact device, reducing installation complexity while offering convenient, energy-efficient lighting control.
